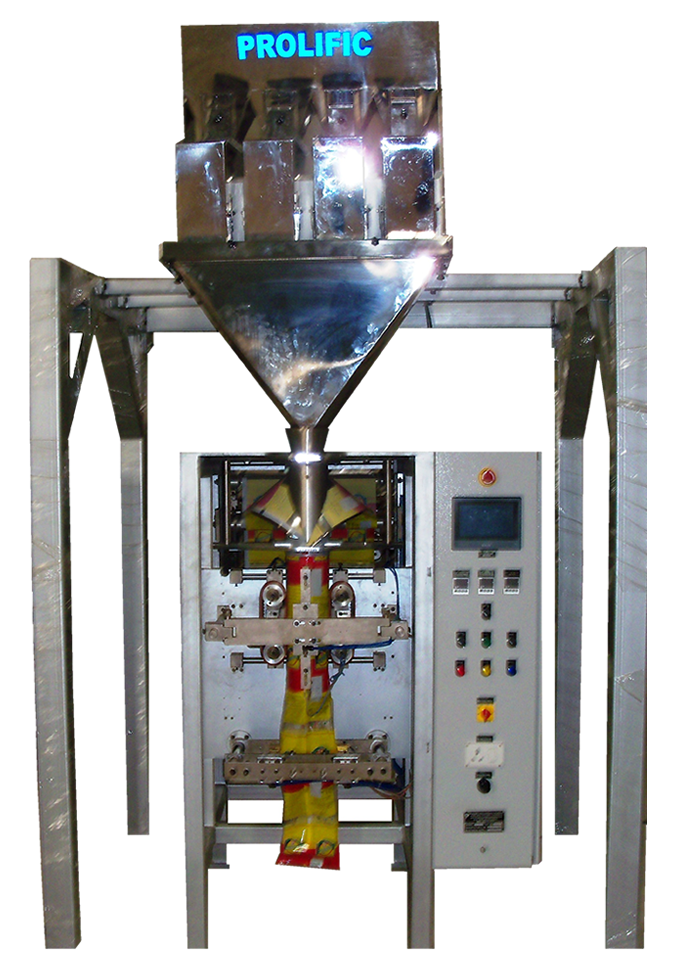

VFFS Machine Model Auto 500 LW Pneumatic

Home  |  Automatic Form Fill Seal Machine VFFS Machine Model Auto 500 LW Pneumatic

VFFS Machine Model Auto 500 LW Pneumatic

E-Brochure

Item Code: Auto-500-LW-Pneumatic

Suitable for packing granular Free Flowing Products such as Grains, Pulses, Namkeen, Confectioneries, Peanuts, Seed Spices, Crop Seeds, Veg Seeds, Pesticide Granules etc.

  •  Robust construction
  •  Optimum performance
  •  Longer service life

Bagger Model Standard Jumbo
Application Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc. Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc.
Fill Weight Range 15 Gram to 1000 Gram 100 Gram to 5000Gram
Pouch Size 70mm W x 75mm H Minimum 230mm W x 350mm H Maximum 100mm W x 100mm H Minimum 350mm W
x 500mm H Maximum
Film Width 160mm Minimum 500mm Maximum 220mm Minimum 730mm Maximum
Output Up to 1500 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills. Up to 1500 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills.
Pouch Type Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional) Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional)
Approximate Dimensions
Bagger Width 800mm 1100mm
Bagger Length 1350mm 1500mm
Bagger Height 1650mm 2000mm
Approximate Weight 700 Kg 1200Kg
Packaging Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film
Power Rating Bagger 3Phase, 415 V AC, 50Hz 3Phase, 415 V AC, 50Hz
Power Rating Weigher

1 Phase, 230V AC, 50Hz

1 Phase, 230V AC, 50Hz
Dry Compressed Air ~ 250LPM @ 6.0 Kg/Cm2g ~ 300LPM @ 7.0 Kg/Cm2g
