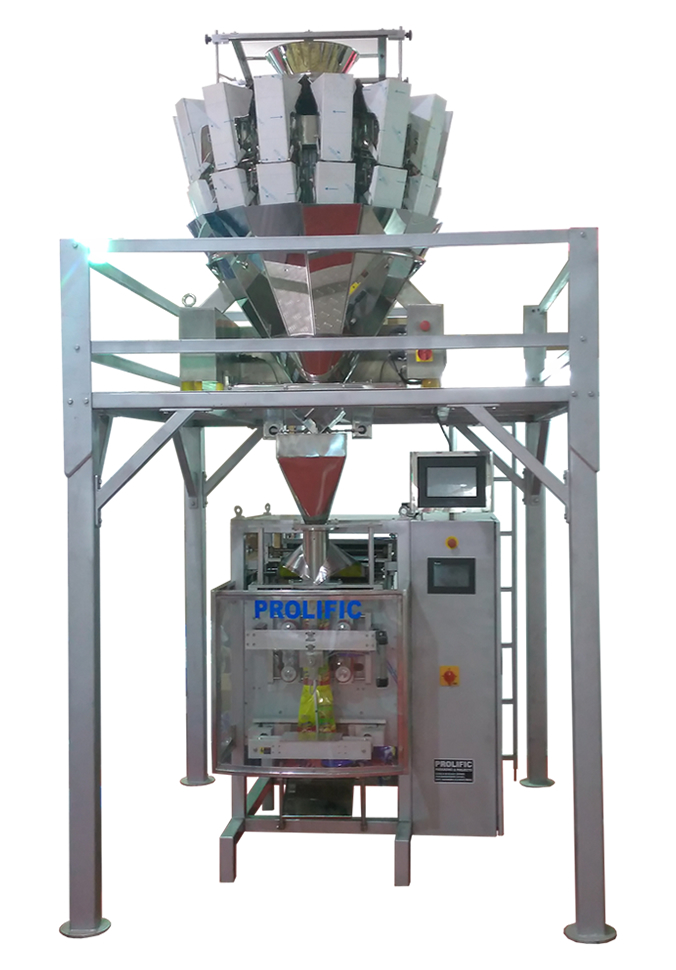

Item Code: Auto 500 MHW 3 Servo
Suitable for Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc.
| Bagger Model | Standard |
| Application | Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc. |
| Fill Weight Range | 15 Gram to 1000 Gram |
| Pouch Size | 70mm W x 75mm H Minimum 230mm W x 350mm H Maximum |
| Film Width | 160mm Minimum 500mm Maximum |
| Output | Up to 4500 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills. |
| Pouch Type | Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional) |
| Approximate Dimensions | |
| Bagger Width | 800mm |
| Bagger Length | 1350mm |
| Bagger Height | 1650mm |
| Approximate Weight | 700 Kg |
| Packaging Film | All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film |
| Power Rating Bagger |
3Phase, 415 V AC, 50Hz. |
| Power Rating Weigher |
1 Phase, 230V AC, 50Hz. |
| Dry Compressed Air | 100LPM @ 6.0 To 7.0Kg/Cm2g |
