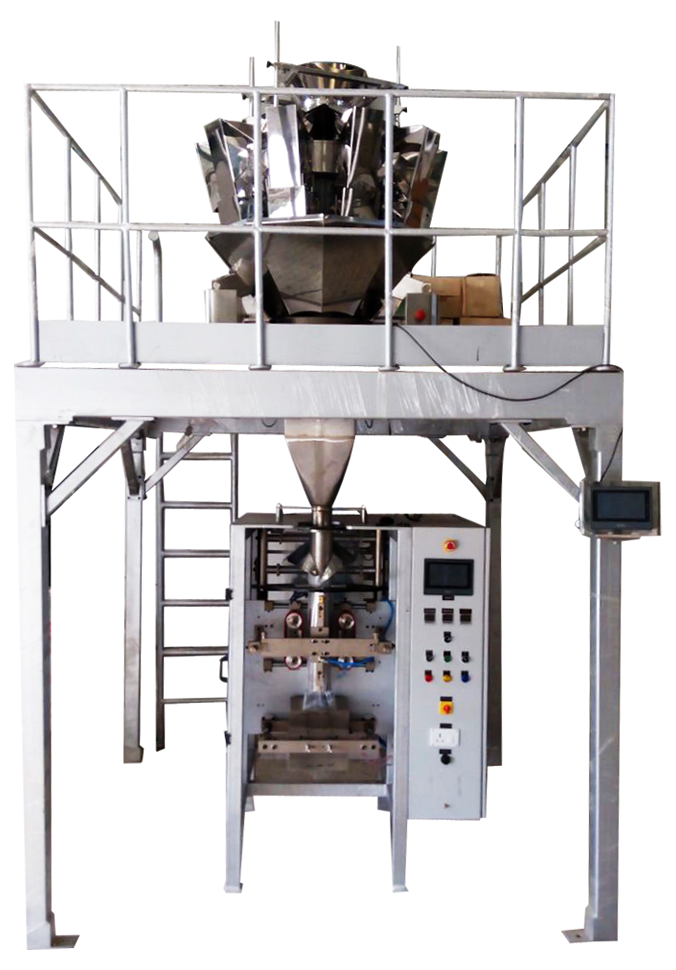

Bagger Model
|
Standard
|
Jumbo
|
Application
|
Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc
|
Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc |
Fill Weight
Range
|
15 Gram to 1000 Gram
Depending on Product Shape and Density.
|
100 Gram to 5000Gram
5000GramDepending on Porduct Shape and Density.
|
Pouch Size
|
70mm W x 75mm H Minimum 230mm W x 350mm H Maximum
|
100mm W x 100mm H Minimum 350mm W x 500mm H Maximum
|
Film Width
|
160mm Minimum 500mm Maximum
|
220mm Minimum 730mm Maximum
|
Output
|
Up to 3000 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills.
|
Upto 2400 Pouch per Hour or More achievable based on product shape, density, fill weight, film quality and Operator Skills. |
Pouch Type
|
Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional)
|
Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional) |
Approximate Dimensions
|
Bagger Width
|
800mm
|
1100mm
|
Bagger Length
|
1350mm
|
1500mm
|
Bagger Height
|
1650mm
|
2000mm
|
Approximate Weight
|
700 Kg
|
1200Kg
|
Packaging Film
|
All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film
|
All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film |
Power Rating Bagger
|
3Phase, 415 V AC, 50Hz.
|
3Phase, 415 V AC, 50Hz. |
Power Rating Weigher
|
1 Phase, 230V AC, 50Hz.
|
1 Phase, 230V AC, 50Hz. |
Dry Compressed Air
|
250LPM @ 6.0 Kg/Cm2g
|
300LPM @ 7.0 Kg/Cm2g
|
