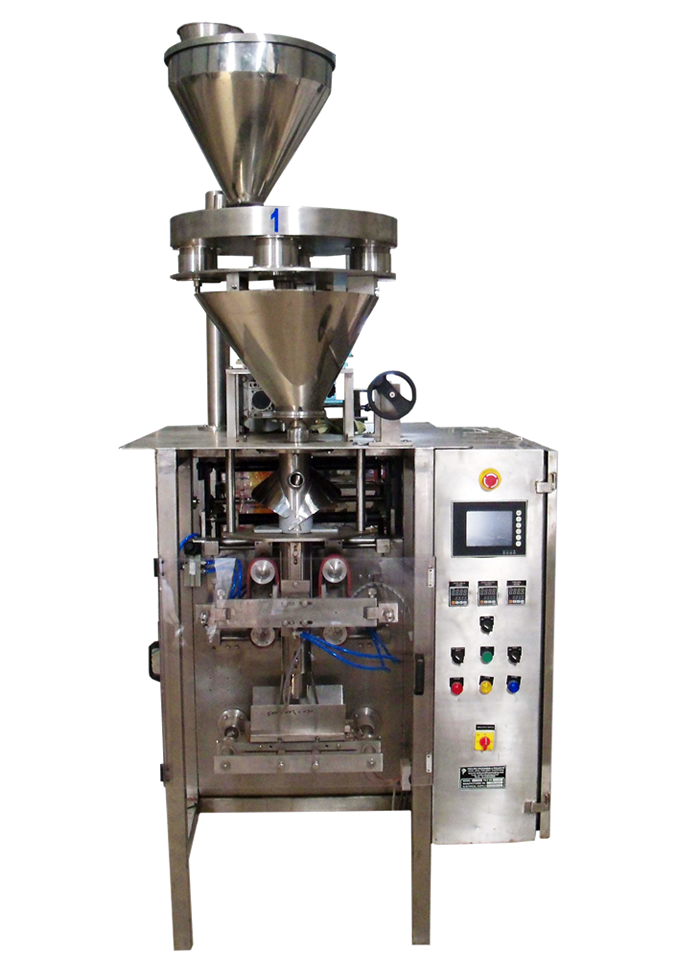

VFFS Machine Model Auto 500 VF GMP Pneumatic

Home  |  Automatic Form Fill Seal Machine VFFS Machine Model Auto 500 VF GMP Pneumatic

VFFS Machine Model Auto 500 VF GMP Pneumatic

E-Brochure

Item Code: Auto 500 VF GMP Pneumatic

Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc.

  • Robust construction
  • Optimum performance
  • Longer service life

Bagger Model Standard Jumbo
Application Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc
Fill Weight Range 15 Gram to 1000 Gram 100 Gram to 5000Gram
Pouch Size 70mm W x 75mm H Minimum 230mm W x 350mm H Maximum 100mm W x 100mm H Minimum 350mm W x 500mm H Maximum
Film Width 160mm Minimum
500mm Maximum
220mm Minimum
730mm Maximum
Output Up to 3000 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills. Up to 2400 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills.
Pouch Type Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional) Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional)
Approximate Dimensions
Bagger Width 800mm 1100mm
Bagger Length 1350mm 1500mm
Bagger Height 1650mm 2000mm
Approximate Weight 700 Kg 1200Kg
Packaging Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film
Power Rating Bagger 3Phase, 415 V AC, 50Hz. 3Phase, 415 V AC, 50Hz.
Dry Compressed Air ~ 250LPM @ 6.0 Kg/Cm2g ~ 300LPM @ 7.0 Kg/Cm2g
